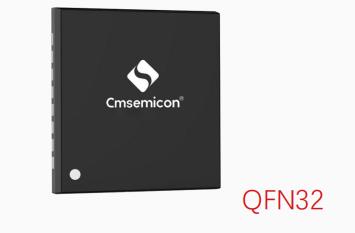

Zhongwei/Csmemicon-CMS32F033QN32-QFN32 microcontroller

Overview:

The CMS32F033 series MCU is an enhanced MCU launched by Zhongwei Semiconductor based on ARM-Cortex M0. It has a main frequency of 64MHz, operating voltage of 2.1V-5.5V, 32KB Flash, 8KB SRAM, up to 30 GPIOs, built-in 32-bit hardware multiplier and divider, high-speed 12bit ADC, PWM, comparator, programmable gain amplifier, operational amplifier, and rich communication interfaces.

Product features:

>ARM Cortex M0 Core

>Main frequency 64MHz

>Working voltage: 2.1V-5.5V

>Working temperature: -40 ℃ -105 ℃

>32KB Flash, 8KB SRAM, 1KB Data Flash

>Supports BOOT function, space can be set to 0-4KB

>30 GPIOs

>Multiple timers -1 24Bit timer, 2 32Bit timers, 32-bit watchdog timer, 6-bit window watchdog timer interface

>Supports high-precision 12Bit ADC1@1.2Msps Module, up to 30 channels

>Built in 2-way analog comparator, capable of independently generating interrupts

>Built in 2 programmable gain amplifiers, with a gain of 4x to 32x

>6+4 channel PWM output

>1 I2C interface - communication speed up to 1Mb/s

>1 SSP/SPI interface

>2 UARTs - Built in Programmable Baud Rate Generators

>Support different working modes

>Support Universal Cyclic Redundancy Check Unit (CRC)

>96Bit ID (UID)

>128Bit User UID (USRUID), user configurable, encryptable

The CMS32F033 series MCU is widely used in many fields such as wireless charging, security, energy storage cabinets, industrial communication control, and smart transportation due to its high performance and versatility.

Wireless charging: In wireless charging applications, the CMS32F033 series MCU can be used to control power transmission and reception modules, ensuring the safety and efficiency of the charging process. Its built-in high-speed ADC and PWM functions are crucial for regulating current and voltage.

Security System: In the field of security, the CMS32F033 series MCU can be used as a control unit for monitoring cameras, access control systems, alarm systems, and other equipment. Its rich GPIO interfaces and stable communication capabilities are utilized to improve the response speed and reliability of the system.

Energy Storage Cabinet: As a key equipment for energy storage and management, the CMS32F033 series MCU can be used for real-time monitoring and management of battery status, including charging and discharging control, battery level monitoring, and other functions.

Industrial communication control: In industrial automation and control systems, the CMS32F033 series MCU can serve as the core processor of PLC or other control equipment, responsible for executing programs, processing data, and communicating with peripheral devices such as sensors and actuators.

Smart Transportation: In smart transportation systems, the CMS32F033 series MCU can be applied to traffic signal control, vehicle monitoring systems, etc. Through its powerful data processing capabilities and various communication interfaces, efficient traffic management and monitoring can be achieved.

In summary, the versatility and high reliability of the CMS32F033 series MCU make it an ideal choice in these fields. Whether in industrial settings with high performance requirements or in traffic and security fields with strict requirements for stability and safety, the CMS32F033 series MCU can provide excellent solutions.

Shenzhen Guanhua Weiye Technology Co., Ltd. Zhongwei Original Factory Agent

A full range of models can be provided, including samples, original factory technical support, stable supply of goods, and new batches

If needed, please contact 13620224453 for consultation.
